Stationary/portable band saw
mod. 95

Stationary band saw for the cutting of metal materials of any type with a maximum diameter of 105 mm.
Equipped with great power, gear transmission with long-life lubricants, automatic belt tension.
It offers the possibility to work on any material by acting on the electronic adjustment of the blade speed.




Technical features

  • Switch with safety device
  • Automatic blade stretcher
  • Electronic speed regulator 20-110 m/min with torque control
  • Easy to transport
  • Spare blades for model 95 - Bi-metallic blade, pitch 8-12 for solid parts, standard parts, section bars and pipes, for low thickness
  • Headphones mandatory (according to DIN EN 352)
Technical data

V Insulation class m/min. Cutting depth Kg T U H Kg
mm mm
230 - Hz 50 - SPH 1 20÷110 105 (max) 20 370 550 400 22
48 - Hz 50 - SPH - kW1,8

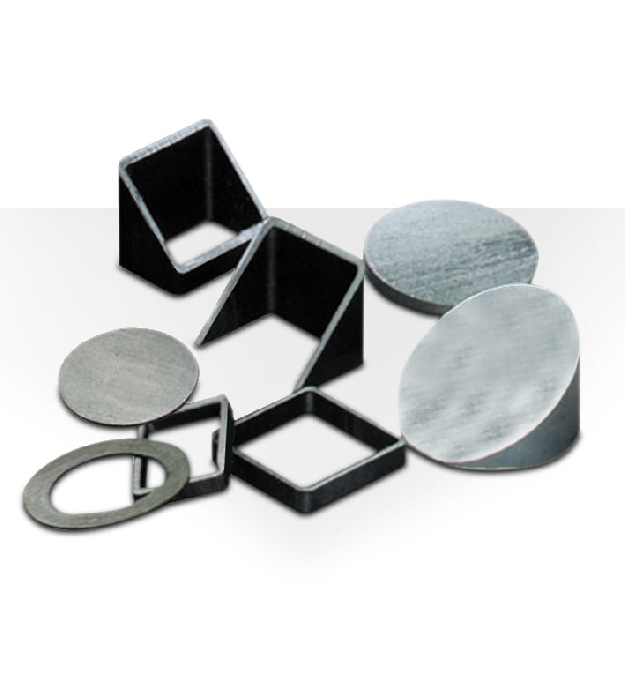

Cutting capacity

mm Cut mm mm
1140x13x0,65 90° 100 100x105
45° 55 55x60
Overall dimensions
A B C
mm
620 530 580
-->
