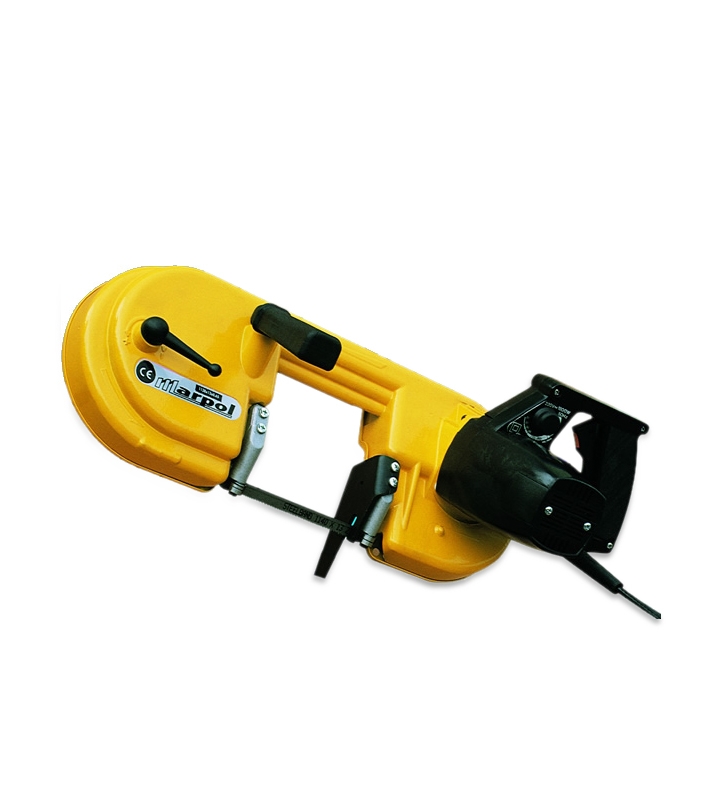

Portable band saw
mod. 94

Portable band saw with high technical characteristics.
Equipped with great power, gear transmission with long-life lubricants, automatic belt tension.
It offers the possibility to work on any material by acting on the electronic adjustment of the blade speed.


Technical features

  • Switch with safety device
  • Automatic blade stretcher
  • Blade guide supports
  • Workpiece support pin
  • Handgrip
  • Electronic speed variator
  • Spare blades for Model 94 - bi-metallic blade, pitch 8-12 for solid parts, standard parts, section bars and pipes, for low thickness
  • Headphones mandatory (according to DIN EN 352)
Technical data

V m/min. Cutting depth Kg T U H Kg
mm mm
230 - Hz 50 - SPH 20÷110 105 (max) 9 260 610 270 10
48 - Hz 50 - SPH - kW 1,8
Cutting capacity

mm Cut mm mm
1140x13x0,65 90° 100 100x105
45° 55 55x60
Ingombro macchina
A B C
mm
590 260 260
-->
